Orlando City Stadium adds high-density Wi-Fi for soccer fans

October 18, 2017 by Terry Sweeney Leave a Comment

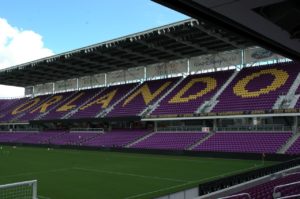

Orlando City Stadium, home of the MLS’s Orlando City SC. Credit all photos: Jenna Cornell (click on any picture for a larger image)

Resilient. Connected. Reliable. Even before its new stadium opened in March of this year, Orlando City SC, the Major League Soccer franchise in central Florida, knew exactly what it wanted from fan-facing Wi-Fi.

Leading that list was networking infrastructure to support the stadium’s 25,500 capacity. The team needed to be able to deliver live streaming video to fans through the team’s LionNation app. And they wanted a way to begin collecting user info and building relationships with fans, according to Renato Reis, CIO for the club.

And with so many professional sports teams having already installed wireless infrastructure, Reis knew there was no reason to reinvent the Wi-Fi wheel. “I had the privilege to travel and interview other organizations,” he said, including the Hard Rock Stadium in Miami where the NFL’s Dolphins and the University of Miami both play football, as well as MetLife Stadium in East Rutherford, N.J., shared by the NFL’s Jets and Giants. Reis said Orlando City SC’s technology drew heavily on the experience and deployment of Levi’s Stadium in Santa Clara, Calif. “I used what I learned,” he laughed.

Paying their own way

Orlando City is barely 3 years old and played its first two seasons in the nearby Citrus Bowl, now called Camping World Stadium.

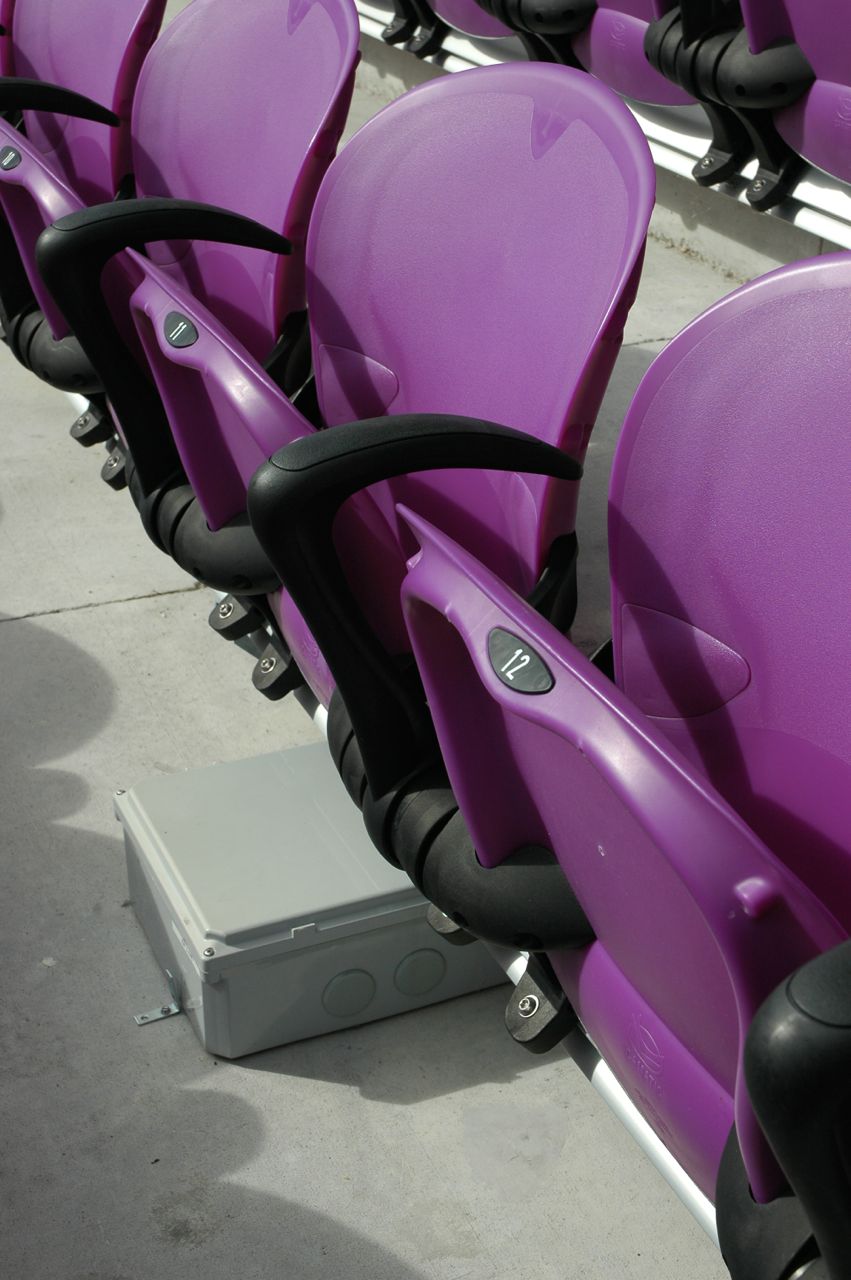

Under-seat Wi-Fi deployment at Orlando City Stadium.

After some confusion with the City of Orlando, Orange County and the state of Florida over money and budget for a new stadium, Orlando City SC’s ownership abandoned a public-private partnership to go its own way. Orlando City Stadium was built with private funds and opened in time for this year’s opener. Orlando City SC shares the venue with the Orlando Pride, the women’s professional soccer team.

“We had a brand-new stadium and no installed Wi-Fi, two factors that really benefited us,” Reis told Mobile Sports Report. “We planned the position of our antennas and leveraged lessons from other organizations to design something from scratch and build for the future.”

Orlando City SC had some help there. The MLS franchise partnered with managed service provider Spectrum Enterprise, a division of Charter Communications; Spectrum in turn has a longstanding partnership with Orlando City’s equipment vendor, Cisco. Together, they installed networking gear, lots of new fiber-optic cable, and the wireless infrastructure that rides atop the stadium’s 10-Gbps backbone network.

The fan-facing Wi-Fi consists of more than 550 wireless access points around the stadium, or about one AP for every 45 users. The APs are installed under seats, in handrails and on posts. “It was more of a challenge to find the right places, design-wise, for APs to keep them out of people’s line of vision,” Reis said.

Orlando City CIO Renato Reis, posing in front of some cool graffiti and below a Cisco AP.

Supporting streaming video

AP density and processing power were important considerations for Orlando City SC. With such dense coverage, each AP delivers 50-80 Mbps per user, Reis said. That ensures that users of the team’s LionNation app enjoy high performance when using its streaming video capability; users posting to social media or checking email also get faster throughput, he added.

That sort of performance is essential, especially for users of the premium version ($8.99) of the LionNation app. In addition to live-streaming video, premium members get access to behind-the-scenes content, as well as 10 percent discounts off food, drink and merchandise purchases (and points for every dollar spent). They also get priority access to post-season tickets and single-game tickets.

Spectrum helped with the stadium’s engineering and remains active in day-to-day management, said Reis. Spectrum performed three rounds of Wi-Fi tuning and collecting data to see where usage was greatest. No surprise: Entry gates and concession areas, according to Reis. They then made adjustments, repointing APs where needed, thus ensuring bandwidth is available where it’s needed most.

Orlando City SC has also been testing wireless food ordering in one stadium section with 1,500 users since the beginning of the year. “The challenge there isn’t technology but rather logistics,” Reis explained.

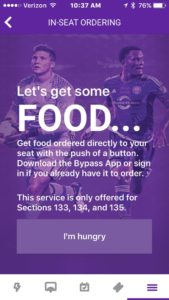

Screenshot of the Orlando City app

The team is planning to extend the capability more broadly, but needs more experience to help decide how to proceed. “We’ll probably run the test for the rest of the season and make changes next year,” he said.

Reis’s biggest challenge for the moment is encouraging Wi-Fi usage – and also persuading users to register if they’re not on the app. Even with Orlando City Stadium’s Wi-Fi coverage, most users will stick to cellular (the stadium’s DAS network is serviced by AT&T, Verizon T-Mobile and Sprint), he said.

“The problem I’m trying to solve is who is at the stadium,” Reis explained, adding that the only information he has is that a fan bought four tickets, for example, and when they get scanned at the gates. So how to learn more? “Most landing pages are boring,” he laughed; still, he’s considering offering different incentives for Wi-Fi users to check in.

“Can I loyal-ize you so I can learn what you like, what offers are more appealing, what you enjoy and don’t?” Reis asked. That’s a primary challenge for most sports teams, entertainment companies and ecommerce entities. Luckily for Reis and the Orlando City SC, he’s got the bandwidth, backbone and people resources to learn more about fans and build those relationships going forward.

Filed Under: 4G LTE, Apps, AT&T, Cisco, DAS, Levi's Stadium, MLS, Soccer, Wi-Fi, Wi-Fi Video Streaming Tagged With: 4G LTE, Apps, AT&T, Cisco, DAS, Levi's Stadium, MLS, Mobile Sports Report, Orlando City SC, Orlando City Stadium, Spectrum Communications, Stadium Wi-Fi, Verizon Wireless, Wi-Fi

Mobilitie brings interim Wi-Fi to L.A. Coliseum

October 13, 2017 by Terry Sweeney Leave a Comment

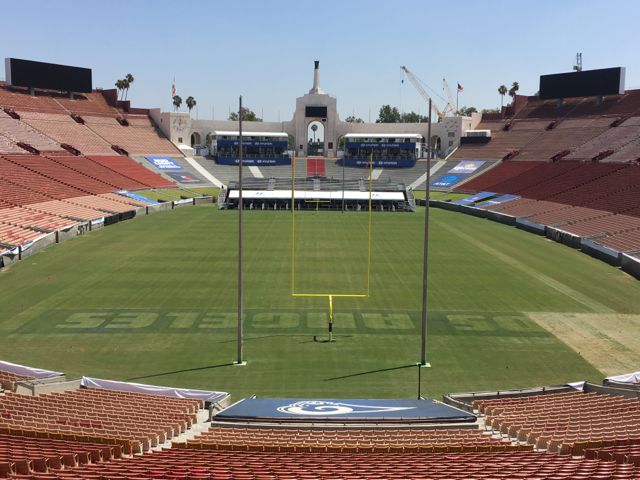

The Los Angeles Coliseum is home to the NFL’s Rams and the University of Southern California. Credit all photos: Terry Sweeney, MSR (click on any photo for a larger image)

Previously reliant solely on DAS coverage, the Los Angeles Coliseum added Wi-Fi coverage last November in the student section – about 7,500 seats on the bowl’s east side – thanks to a donation of equipment and labor by Mobilitie.

The wireless services provider is also in the process of adding Wi-Fi to two sets of club suites — behind the southern end-zone and on the deck of the Coliseum’s iconic peristyle. These are used by fans of the Los Angeles Rams, the recently relocated NFL franchise playing its second season in the City of Angels. The Rams’ new $2.6 billion stadium is under construction in nearby Inglewood, projected to be done in 2019 and ready for the 2020 NFL season.

In addition to the Rams, the Coliseum is also home field for the University of Southern California’s football team. It’s also slated to be the stadium for the 2028 Summer Olympics, playing host to the world’s athletes for an unprecedented third time.

More renovations coming soon

Editor’s note: This profile is an excerpt from our latest STADIUM TECH REPORT, our Fall 2017 issue that has in-depth profiles of network deployments at Notre Dame Stadium, Colorado State’s new stadium, and the Atlanta Falcons’ new Mercedes-Benz Stadium. DOWNLOAD YOUR FREE COPY of the report today!

Mobilitie’s generosity notwithstanding, all the fan-facing Wi-Fi at the Coliseum is temporary, according to Derek Thatcher, an IT manager for USC, which manages the Coliseum on behalf of the County of Los Angeles. Demolition at the stadium will get underway in January 2018; while much of the bowl’s structure will remain, permanent club suites will be added as will new seating and new aisles with handrails. That will translate to a reduction in bowl capacity from 94,000 to 77,500, according to USC.

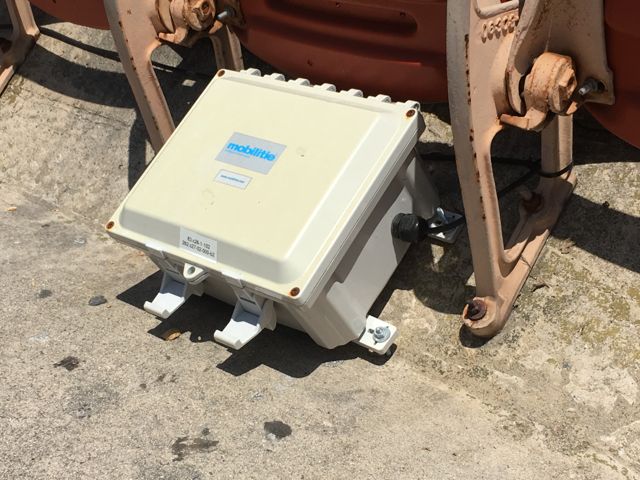

Close-up of the under-seat Wi-Fi APs

The $270 million refresh was already underway before LA’s eleventh-hour entry in the Olympics sweepstakes, activated after Boston voted down a bid. The U.S. Olympic Committee has earmarked $175 million for other upgrades at the Coliseum for the quadrennial gathering of the world’s athletes – and broadcasters.

A surprise part of LA’s Olympic bid was a proposal for simultaneous opening ceremonies at two venues, Thatcher explained. Under the USOC’s plan, the visual and logistical extravaganza could be split between the Coliseum and the gleaming new NFL stadium that the Rams will share with the Los Angeles Chargers (formerly of San Diego). Though the Games are more than 10 years away, it’s unclear how the use of two venues would work logistically. But the potential wow factor of such a spectacle is undeniable.

In the meantime, Thatcher, many of his USC counterparts and busloads of subcontractors will have their hands full once the current NFL season ends early next year. Fan-facing Wi-Fi is part of the plan for the Coliseum refresh; no word on which vendors are in the running or when the university will award the Wi-Fi contract.

Another look at the under-seat AP deployment

Gaining insight for the future

The USC Trojan faithful and Rams fans at the Coliseum had been reliant on DAS from AT&T, T-Mobile and Verizon Wireless. But Wi-Fi coverage is envisioned from the gates to the concourses and bowl. The Coliseum Wi-Fi will not extend to adjacent parking lots, which are owned by the State of California, not USC, Thatcher added.

And though the equipment and service contract hasn’t been awarded yet, Mobilitie made a smart move with the interim gear it donated – Wi-Fi access points all made by Aruba (now owned by HP Enterprise), the same Wi-Fi gear in use across the rest of USC’s campus. The donated network also gives Mobilitie insight to usage patterns, user habits and engineering challenges that are unique to the venue.

The Coliseum’s renovation is projected to be done by August 2019, though the facility will be useable for home games played by both USC and the Rams in the interim, according to Thatcher.

In the meantime, 166 Aruba APs will power fan-facing Wi-Fi at the Coliseum. Mobilitie installed under-seat APs; rather than drill new conduits or use saw-cuts through stadium concrete, the service provider used low-profile rubber matting to conceal the wiring. Many of the APs are also installed on angled concrete, which helps preserve storage space beneath the seats, a plus for fans and their sacks and packs.

Filed Under: 4G LTE, Aruba, AT&T, DAS, NCAA Football, NFL, T-Mobile, Verizon Wireless, Wi-Fi Tagged With: 4G LTE, Aruba, AT&T, DAS, LA Rams, Los Angeles Coliseum, Los Angeles Rams, Mobile Sports Report, Mobilitie, NCAA, NFL, Paul Kapustka, Stadium Wi-Fi, University of Southern California, USC, Verizon Wireless, Wi-Fi

Iowa’s Kinnick Stadium gets new DAS for 2017

October 5, 2017 by Paul Kapustka Leave a Comment

DAS antennas seen on flagpoles at Iowa’s Kinnick Stadium. Credit: Gary Turner / CWS (click on any photo for a larger image)

Fans at the University of Iowa’s Kinnick Stadium should finally have cellular connectivity this season, thanks to a new neutral-host DAS installed by Connectivity Wireless Solutions over the past offseason.

Though we don’t have any stats or speed test reports yet, Connectivity Wireless said the DAS was scheduled to begin operation at the start of the season, with fine-tuning taking place during the first few home games. Verizon Wireless and U.S. Cellular were active on the DAS at the start, according to Connectivity Wireless, with AT&T in testing at the season’s start.

Steven Morris, director of engineering for Connectivity Wireless, said the new DAS is using Corning One gear at the core, and has a mainly fiber infrastructure with coax used only in the “final 30 to 40 feet” for connection to edge gear and antennas. Connectivity Wireless also installed a new DAS at the school’s basketball stadium, Carver-Hawkeye Arena, which should also be ready for the upcoming season. According to news reports, the DAS contract for Kinnick is $6 million, while the cost for the network at Carver-Hawkeye is $3 million.

The DAS for the 70,000-seat historic Kinnick Stadium, Morris said, has 13 sectors, and according to news reports, uses approximately 200 antennas. Like many older open-bowl stadiums, deployment at Kinnick was a challenge simply due to its design as well as to the fact the building has historical aesthetic elements, making antenna placement a job with multiple approvals necessary.

Overhead view of the bowl shape of Kinnick Stadium. Credit: University of Iowa

Overcoming aesthetic and design challenges

“There was no real place for antennas,” said Morris, who said Connectivity Wireless found a way to bring coverage to the main bowl seating partially through a strategy of replacing existing flagpoles mounted around the stadium’s edges with new custom-designed poles that had conduit and antenna mounts built in.

“It was a big challenge for us, with lots of approvals to go through,” said Morris. Connectivity Wireless also had to trench fiber from the stadium to the campus’ network head-end, which is located in one of the school’s hospitals about a mile away from Kinnick. All this work needed to be done in the spring and summer, Morris said, since you can’t dig underground in Iowa where winter weather can regularly produce sub-zero temperatures.

With plenty of fiber capacity now in place, Morris said Kinnick Stadium could also eventually install a Wi-Fi network, though it would most likely mean some kind of under-seat AP deployment with its associated coring costs. However, there still may be some legal entanglements regarding any future network deployments, as Iowa is still involved in a lawsuit with American Tower, which it had originally contracted with to build the Kinnick DAS. That 2013 deal, however, was terminated by the university in 2015, and the matter is still being adjucated under a lawsuit filed by American Tower. American Tower would not comment on the status of the lawsuit.

More flagpole-mounted DAS at Kinnick Stadium; Credit both photos: Gary Turner / CWS

Filed Under: 4G LTE, AT&T, DAS, NCAA Football, Verizon Wireless Tagged With: 4G LTE, AT&T, Carver-Hawkeye Arena, Connectivity Wireless Solutions, DAS, Kinnick Stadium, Mobile Sports Report, NCAA, Paul Kapustka, U.S. Cellular, University of Iowa, Verizon Wireless

NFL Wi-Fi update: AT&T Stadium adds 667 APs

September 10, 2017 by Paul Kapustka 2 Comments

A row shot of the under-seat APs at AT&T Stadium. Photo: Dallas Cowboys

With today’s main NFL season schedule already underway, here is a quick update on all the NFL stadium Wi-Fi updates we know about that are either finished or still under construction for the 2017 season:

— AT&T Stadium, already the location of the biggest (by number of APs) stadium network we know of, is in the process of adding another 667 APs, a project scheduled to be finished in the next few weeks. According to John Winborn, CIO for the Dallas Cowboys Football Club, the new APs are all the Cisco 3800 two-radio models, and will be installed on the stadium’s 400-level seating area.

When done, AT&T Stadium will have 2,567 APs, with plans to add another 400 in the upcoming offseason. After that, said Winborn, AT&T Stadium will “be out of locations in the stadium to place additional APs without additional spectrum opening up.” (editor’s note: This post has been updated to correct an error in reporting that previously stated that 600 new APs had been installed.)

— In Atlanta, the fans are getting ready for the first regular-season game at the new Mercedes-Benz Stadium, which will have nearly 1,800 APs total, many of those under the seats in the bowl.

— As previously reported in MSR, Denver’s Sports Authority Field at Mile High is in the process of ripping and replacing its former Wi-Fi network, installing 1,470 new Cisco 3800s in a project scheduled for completion by late October/early November.

— In Philadephia, Lincoln Financial Field is in the process of switching from an Extreme Networks deployment to a new one using Wi-Fi gear from Panasonic. More details on this project are promised later this fall.

— In Seattle, the Seahawks’ IT team is adding additional APs to improve coverage in the four corners of the upper seating sections of CenturyLink Field, according to Chip Suttles, vice president of technology for the Seahawks. Suttles said a full offseason tuning assessment with gear provider Extreme Networks also saw a new channel plan put in place, and “multiple Wi-Fi antenna orientations to improve coverage.”

— Detroit’s Ford Field also got a Wi-Fi (and DAS) upgrade over the past offseason, a revamp that will now allow all visitors, and not just Verizon Wireless customers, to use the stadium Wi-Fi.

— Chicago Bears fans will finally have free Wi-Fi this season, after being forced to pay for access previously.

— Following the announcement that the Arizona Cardinals were switching from CDW to Cox Business as the exclusive technology provider for the University of Phoenix Stadium, the UoP Stadium network was set for some additional APs and some network tuning ahead of the NFL season, according to Mark Feller, vice president of technology for the Cardinals.

Anyone else we miss? Send us the info… and the speedtests!

Filed Under: AT&T, Cisco, Dallas Cowboys, Denver Broncos, Detroit Lions, NFL, Seattle Seahwaks, Verizon Wireless, Wi-Fi Tagged With: AT&T, AT&T Stadium, CenturyLink Field, Cisco, Denver Broncos, Detroit Lions, Ford Field, Lincoln Financial Field, Mobile Sports Report, NFL, Paul Kapustka, Philadelphia Eagles, Seattle Seahawks, Sports Authority Field at Mile High, Stadium Wi-Fi, Verizon Wireless, Wi-Fi

Verizon: Still no data charges for live NFL streaming via NFL Mobile app

September 9, 2017 by Paul Kapustka 34 Comments

There’s less fanfare around the decision this year (and no official press release we can find) but according to Verizon for the 2017 NFL season the wireless carrier will continue its plan from last year and won’t charge its metered-plan customers for data used while watching live NFL games via the NFL Mobile app. Free online slot games are the perfect place to start playing – https://slots-online-canada.ca/free-slots/

UPDATE, Nov. 4: Please see this post with a Verizon response to NFL Mobile billing issues.

As we noted last year, some of the most-read stories in Mobile Sports Report history have been posts wondering about how much data customers might use watching a live football game on their phones. The answer now, for many Verizon customers, is easy: It’s still zero. You will still need to pay $1.99 a month again this fall to watch RedZone on your phone via NFL Mobile, but watching the live local and national-broadcast games (like Sunday night games and Monday Night Football) won’t chew up any of the gigabytes in your data plan. That is, if you have a data plan.

Where it may get tricky — and NFL Mobile and Verizon have a history of things not going quite as planned — is when it comes to customers on Verizon’s new “unlimited” plans. The first reply we got from our Verizon contact said, “Customers with metered plans will also enjoy games data free.”

But what about unlimited customers, we asked. Would NFL Mobile live-action data still be charged to them? This matters somewhat because the plans aren’t truly unlimited — some slowdowns to service can occur if you use more than 22 GB of data during a billing cycle. So it’s unclear to us what will happen if “unlimited” NFL Mobile users go past that number by say, watching every game possible over a cellular connection.

Does that mean that NFL Mobile junkies might actually do better with a metered plan than an unlimited plan? We have no clue. Here is the clarified second response to that question when we posed it to a Verizon spokesperson, so see if it makes sense to you:

Regarding unlimited; most of the time you’ll enjoy the same network experience after your line exceeds 22 GB during a billing cycle. If you exceed 22 GB…and you’re on a cell site that’s congested at that time, it may affect your streaming.

This may be just a small-potatoes quibble, but readers please let us know if things aren’t as free as they should be. What is helpful to know is this fact from the Verizon spokesperson: “Data usage from NFL Mobile may accrue real time when watching, but will be removed afterward in 24-48 hours.” Close watchers of data totals last year hit our comment boards with tales of being charged for NFL Mobile game-watching, but we believe it all turned out right in the end. But our comments space is always open if it doesn’t so please, NFL Mobile fans, keep letting us know what’s really happening out there.

As we also noted last year, many NFL Mobile veterans almost always seek a Wi-Fi connection when they are streaming NFL Mobile games, because better bandwidth and no data charges.

And remember: You can’t watch NFL Mobile live games on your tablet, because Verizon’s rights package only includes cellular phone-type devices.

Filed Under: 4G LTE, NFL, NFL Mobile, NFL Network, Verizon Wireless Tagged With: Apps, live streaming NFL, Mobile Sports Report, NFL, NFL Mobile, Paul Kapustka, RedZone, RedZone Channel, Verizon Wireless, watching NFL on your phone

Denver Broncos, Verizon bring Wi-Fi blitz to Sports Authority Field at Mile High

September 5, 2017 by Paul Kapustka Leave a Comment

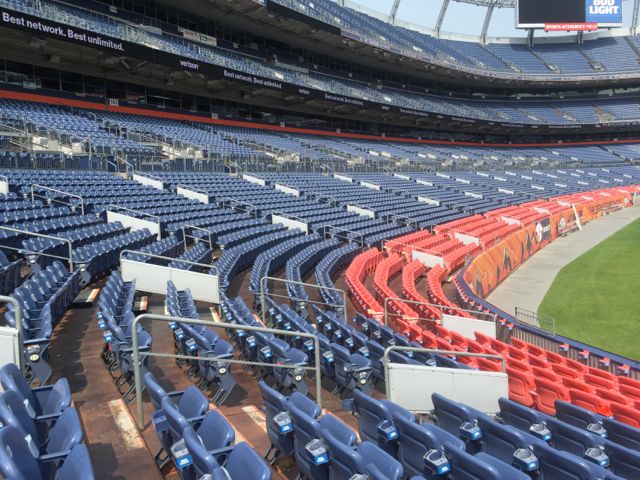

Railing-mounted Wi-Fi enclosures in the lower seating bowl at Sports Authority Field at Mile High in Denver. Credit all photos: Paul Kapustka, MSR (click on any photo for a larger image)

Even as the team on the field seeks to regain its recent Super Bowl champion status, Denver Broncos fans will have something they can all cheer this season — vastly improved Wi-Fi networking service, which is now available to all fans and not just Verizon Wireless customers.

Even though we found good connectivity on our last visit to Sports Authority Field at Mile High two seasons ago, the caveat was that Wi-Fi was only available to Verizon customers, since the carrier couldn’t find another wireless provider who would chip in to fund the system. Fast-forward to later in 2016, when Verizon and the Broncos sought to upgrade the entire system and ended up picking a $6 million bid from Cisco to install a total of 1,470 new Wi-Fi APs, replacing the 640 APs in the old system, which started out with 500 Cisco APs in 2011 and added some more over the years.

The new network, which is scheduled to be fully completed by late October or early November this year, is already live in parts of the lower bowl at Mile High as well as in many concourse, suite and back-of-house locations. The big difference inside the hardware is the Broncos’ and Verizon’s choice of using the new Cisco 3800 APs, which can have two separate antennas in each device, basically doubling the amount of connectivity per unit. The new network will be powered by a new 10-gig backbone pipe provided by CenturyLink, replacing the 1-Gbps pipe that was previously used.

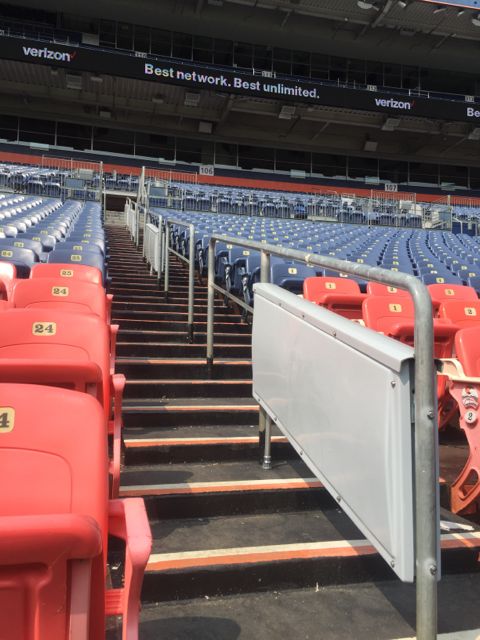

Close-up of a lower-bowl railing AP mount.

Cisco 3800s are proving to be a popular choice in venues lately, being picked for recent deployments at the San Jose Sharks’ SAP Center and at Notre Dame Stadium.

“The 3800 is a game-changer,” said Russ Trainor, the Broncos’ vice president of information technology, during a stadium tour Tuesday, citing its ability to connect more fans per device. Perhaps the most visually striking note of the upgrade is the huge amount of new railing-mounted APs in the building, with several per row not an uncommon sight in the lower bowl. Jason Moore, a senior IT engineer with the Broncos (and as Trainor calls him, a “Wi-Fi wizard”) said the enclosures are all custom designs from a local provider, with some of the fiberglass structures housing not just Wi-Fi but Verizon DAS antennas as well.

(Right now, the DAS situation at Mile High remains unchanged from our last visit, with all cellular carriers basically running their own operations.)

Going under-seat in bright orange fashion

The other new deployment method being used by the Broncos is under-seat placement, a tactic used for about 90 APs so far, half of those in the South end zone seats, where there are no overhead structures at all. Overhead AP placements are also being used in the main seating bowl, mainly to serve rows at the tops of sections.

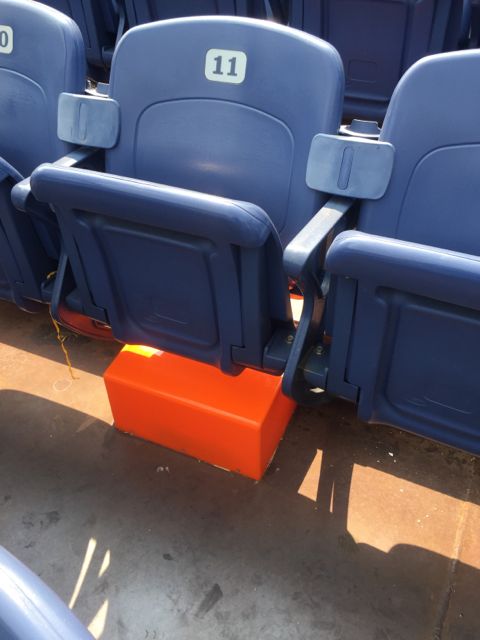

No mistaking where the under-seat APs are at Broncos games.

Unlike other stadiums, who try to hide the under-seat APs as best they can, the Broncos have gone the opposite direction, painting many a bright Broncos orange to show up under the Broncos blue seats. “The mounting options are just about getting the APs as close to fans as we can,” Moore said. “Railing [mounts] work great. Under seat is new to us, and we’re excited to see how they work.”

In a quick empty-stadium test, MSR found Wi-Fi speeds in the south stands of 46 Mbps download and 47 Mbps up, on both the all-access and Verizon-customer SSIDs. In section 309, right at the 50-yard line, we got a Wi-Fi speed reading of 69 Mbps down, 75 Mbps up. Verizon execs at the tour said that like at other NFL stadiums where Verizon helps provide the Wi-Fi, Verizon customers will have reserved bandwidth and an autoconnect feature that links them to Wi-Fi without any sign-in needed. Trainor said the Broncos are still undecided how to approach the all-access Wi-Fi onboarding, though the team is leaning in the favor of having some kind of portal approach to gather information from fans using the service.

Of the 1,470 planned new APs (that count may change as final tuning is made, Moore said), the Broncos plan to deploy 920 of those in the seating bowl. With many of those devices having two 5 GHz antennas for each AP, the Sports Authority Field at Mile High crowds should enjoy one of the league’s top network experiences when all the work is completed.

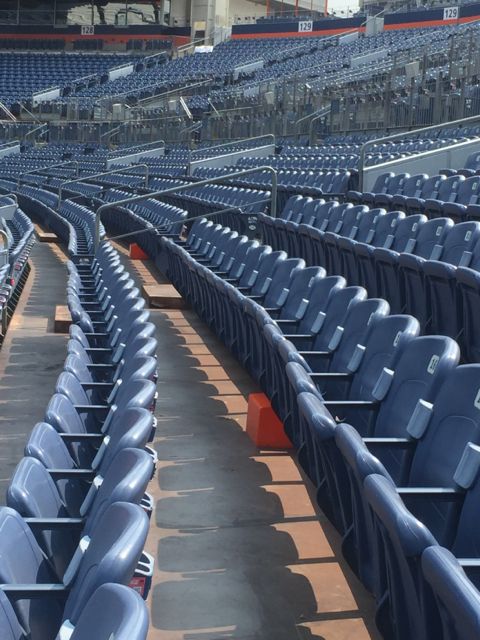

Both railing and under-seat deployments are used to bring Wi-Fi to the south stands.

Those readers who closely track MSR stories for such stats should know that we are now working on a new chart to show not just the top numbers of APs in stadiums, but actual radios and antennas thanks to devices like the Cisco 3800 that have more than one per unit. (Any and all help with such counts is appreciated, you know where to find us!)

Like other stadiums, the network in the bowl at Sports Authority Field at Mile High will switch to only 5 GHz connections when complete. Even a few years ago, stadiums needed to still support 2.4 GHz Wi-Fi connections for fans, but the quick shift in consumer devices has shown that almost all mobile devices used these days have a 5 GHz radio.

A string of summer concerts at the stadium (which still bears the name of the now-bankupt and closed sporting-goods business as the Broncos search for a new title sponsor) kept the network deployment from being completed sooner, but Trainor and Moore said the incremental improvements are already being noticed. With both the old system and new system working simultaneously, Moore said that at last week’s college game between the University of Colorado and Colorado State University, the network saw approximately 35,000 unique users — more than the typical 25,000 unique connections during a Broncos game when only Verizon customers could use the network.

“Our goal and challenge is to connect as many fans as possible,” Moore said.

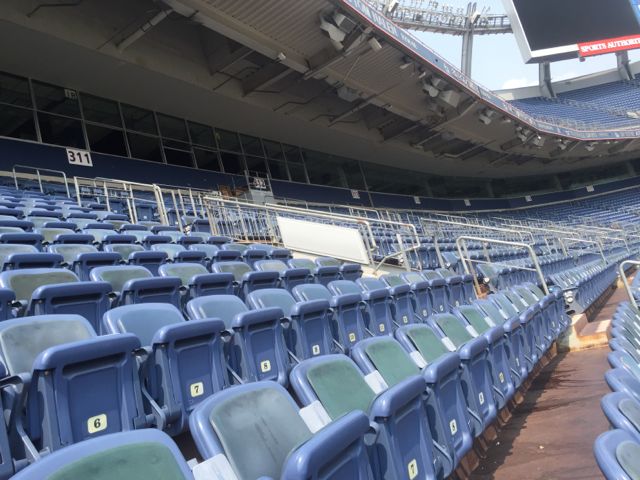

A smaller railing mount seen in the upper deck (300 level) seating section

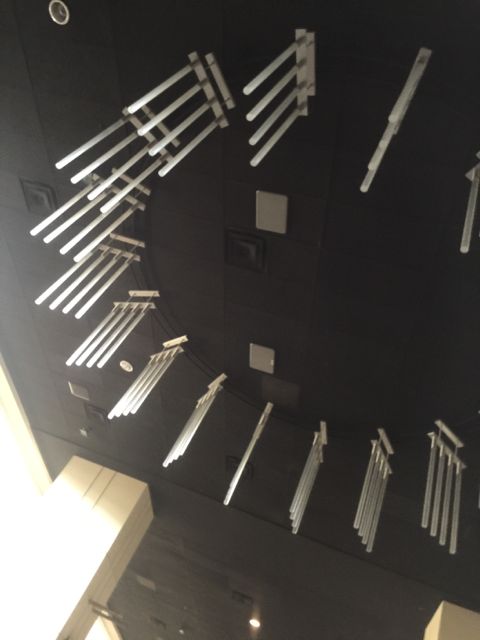

Wi-Fi antenna mounts in the ceiling of the United Club

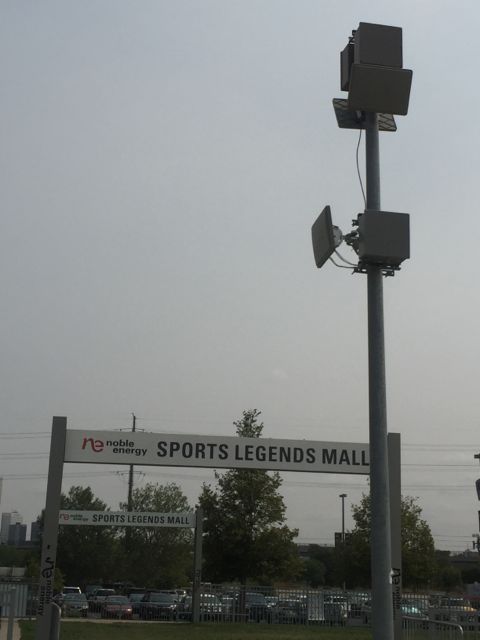

Wi-Fi coverage also exists for the fan-gathering area outside the stadium to the south

No Wi-Fi here, just white horses

Filed Under: 4G LTE, Cisco, DAS, Denver Broncos, Denver Broncos, NFL, Super Bowl, Verizon Wireless, Wi-Fi Tagged With: 4G LTE, CenturyLink, Cisco, DAS, Denver Broncos, Mobile Sports Report, NFL, Paul Kapustka, Sports Authority Field at Mile High, Stadium Wi-Fi, Super Bowl, Verizon, Verizon Wireless, Wi-Fi
